Home page / Theater and scenery equipment / Tracks and engines / Curtain track ShowPipe

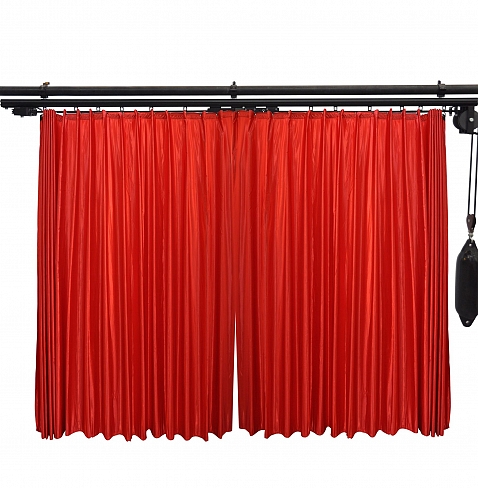

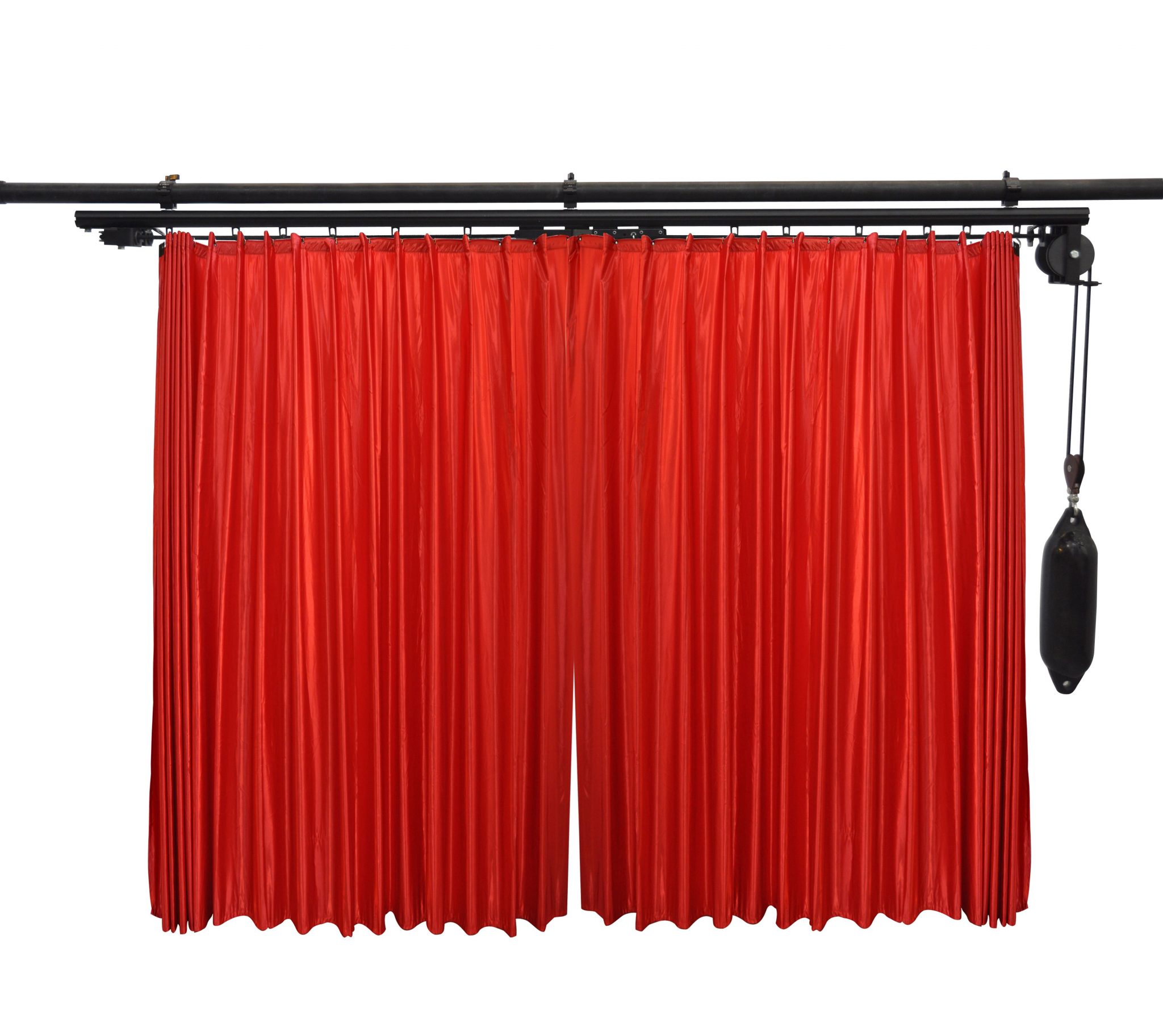

Curtain track ShowPipe

Accessory	Article code	Information
1. Track	11.10.8055 0001 6007	Length: 600 cm • Weight: 1.31 kg/meter
2. Curved Track	8055 0004 0757	45° • Radius: 75 cm • Weight: 1.54 kg/piece
(can also be custom-curved)	8055 0004 1007	45° • Radius: 100 cm • Weight: 2.06 kg/piece
	8055 0007 0507	90° • Radius: 50 cm • Weight: 1.54 kg/piece
	8055 0007 0757	90° • Radius: 75 cm • Weight: 1.54 kg/piece
	8055 0007 1007	90° • Radius: 100 cm • Weight: 2.06 kg/piece
3. Joiner Set	8055 0042 1507	Includes left and right pieces • Weight: 0.11 kg/set
4. End Stop	8050 0050 0001	Weight: 0.03 kg/piece
5. Half Coupler Clamp 75 kg	8055 0680 0757	Fits ø 48/51 mm tubes • 75 kg capacity
+ Channel Nut M10	8055 0110 0017	Weight: 0.40 kg/piece
6. Hidden Ceiling Clip	8055 0110 0017	Weight: 0.004 kg/piece • SWL: 8 kg
7. Diamond-Shaped Nut	8700 9224 0011	Weight: 0.01 kg/piece
8. Square Channel Nut	8055 9224 0007	Weight: 0.02 kg/piece
9. Ball Raced Runner	8050 0205 0083	With swivel hook • 8 kg capacity • Weight: 0.03 kg/piece
	8050 0205 0087	With swivel hook • 8 kg capacity • Weight: 0.03 kg/piece
10. Ball Raced Master Carrier	8050 0221 0163	With 1 S-hook • 15 kg capacity • Weight: 0.05 kg/piece
	8050 0221 0167	With 1 S-hook • 15 kg capacity • Weight: 0.05 kg/piece
11. Scenery Carrier	8055 0230 0002	Weight: 0.11 kg/piece
12. Master Carrier with Brake	8050 0221 0197	15 kg capacity • Weight: 0.05 kg/piece
13. Short Overlap Carrier	8050 0245 0053	With 2 S-hooks • Weight: 0.09 kg/piece
	8050 0245 0057
14. Overlap Carrier Set	8050 0246 0167	Set of 2 pieces • With 4 S-hooks • Weight: 0.82 kg/set
15. Master Carrier for Motor Control	8050 0228 0163	With 1 S-hook • Weight: 0.116 kg/piece
	8050 0228 0167	With 1 S-hook • Weight: 0.116 kg/piece
16. Short Overlap Carrier for Motor Control	8050 0245 1057	Weight: 0.09 kg/piece • with 2 S-hooks
17. Overlap Carrier Set for Motor Control	8050 0246 0157	Set of 2 pieces • Weight: 0.82 kg/set • with 4 S-hooks
18. Double Braided Rope (Ø8 mm)	7530 0308 0007	Weight: 0.04 kg/meter
19. Rope Clamp (set of 3)	8050 0248 0035	Weight: 0.035 kg/piece
20. Head Pulley	8050 0400 0037	Weight: 1.65 kg/piece
21. Return Pulley	8050 0410 0037	Weight: 0.95 kg/piece
22. Line Pickup	8055 0694 0007	Weight: 0.2 kg/piece
23. Weighted Return Pulley	8050 0415 0057	Weight: 5.50 kg/piece
24. Weighted Return Pulley XL	8050 0415 0087	Weight: 10.50 kg/piece
25. Floor Fixed Return Pulley	8050 0420 0007	Weight: 3.38 kg/piece
26. RTD1000	8050 0713 2207	Weight: 11.8 kg/piece
27. RTD3000	8050 0743 3707	Weight: 37.2 kg/piece
28. Limit Switch Set	8050 0770 0010	Weight: 0.226 kg/set
